Portable WiFi Veterinary Endoscope | 750mm | Water & Air Supply, Suction
- Model
- RAE-105Pro
Item specifics
- Image Resolution
- High Definition (HD)
- Working Length
- 750mm
- Pixels
- 1,000,000
- Water & Air Supply, Suction
- Available
- Forceps Working Channel
- Available
- Operated by a Single Veterinarian
- Available
- WiFi Connection
- Available
Review
Description
Introduction to RAE-105Pro Portable WiFi Veterinary Endoscope

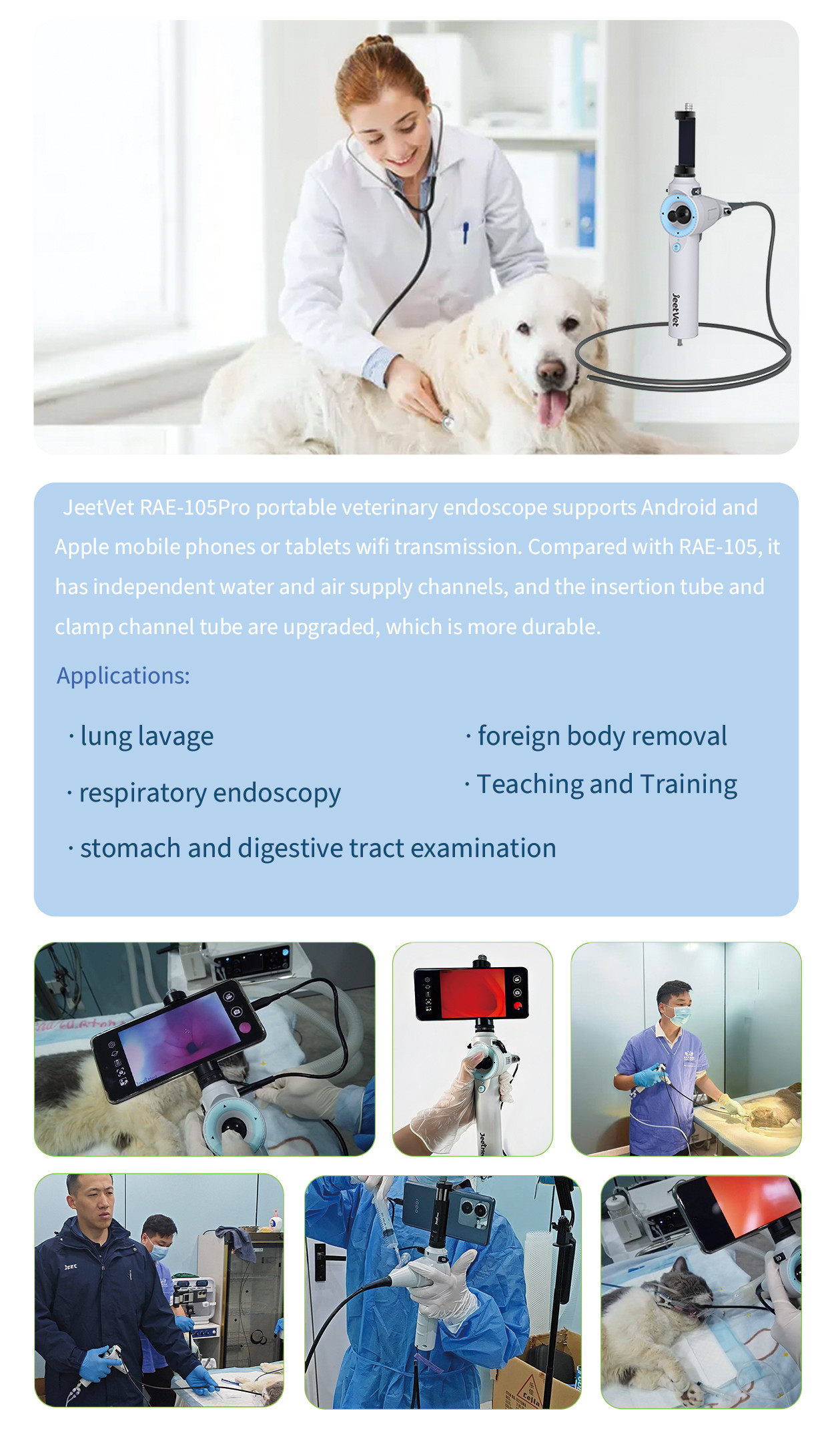

JeetVet RAE-105Pro portable veterinary endoscope supports Android and Apple mobile phones or tablets wifi transmission. Compared with RAE-105, it has independent water and air supply channels, and the insertion tube and clamp channel tube are upgraded, which is more durable. This wireless animal endoscope is mainly used for stomach and digestive tract examination of small and medium-sized animals, such as kittens and puppies.
Main Features
High-quality optical system
Provides HD resolution to ensure clear endoscopic images. Support connection to smart phone, tablet, computer for data transmission and real-time display.
Flexible mechanical design
Flexible insertion tube: The insertion tube is 750mm long and is made of medical-grade materials that are corrosion-resistant and antibacterial.
Convenient operation
Ergonomic handheld controller for easy bending control and rotation.
Pathology reports are output online in real time and quickly transmitted to customers.

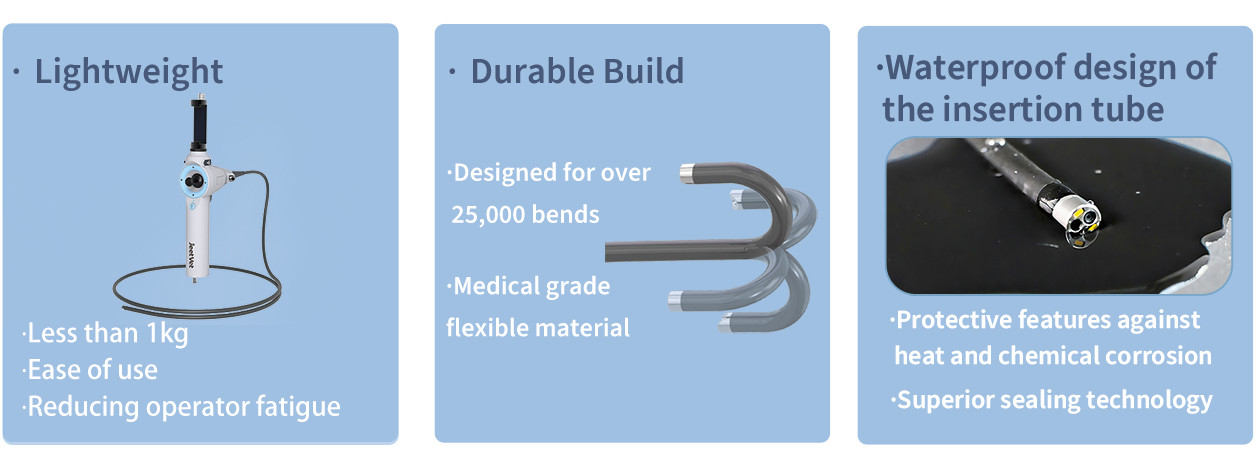

Durable and Efficient
Flexible tube undergoes rigorous aging tests. Designed for over 25,000 bends, guaranteeing long-term reliability. Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.

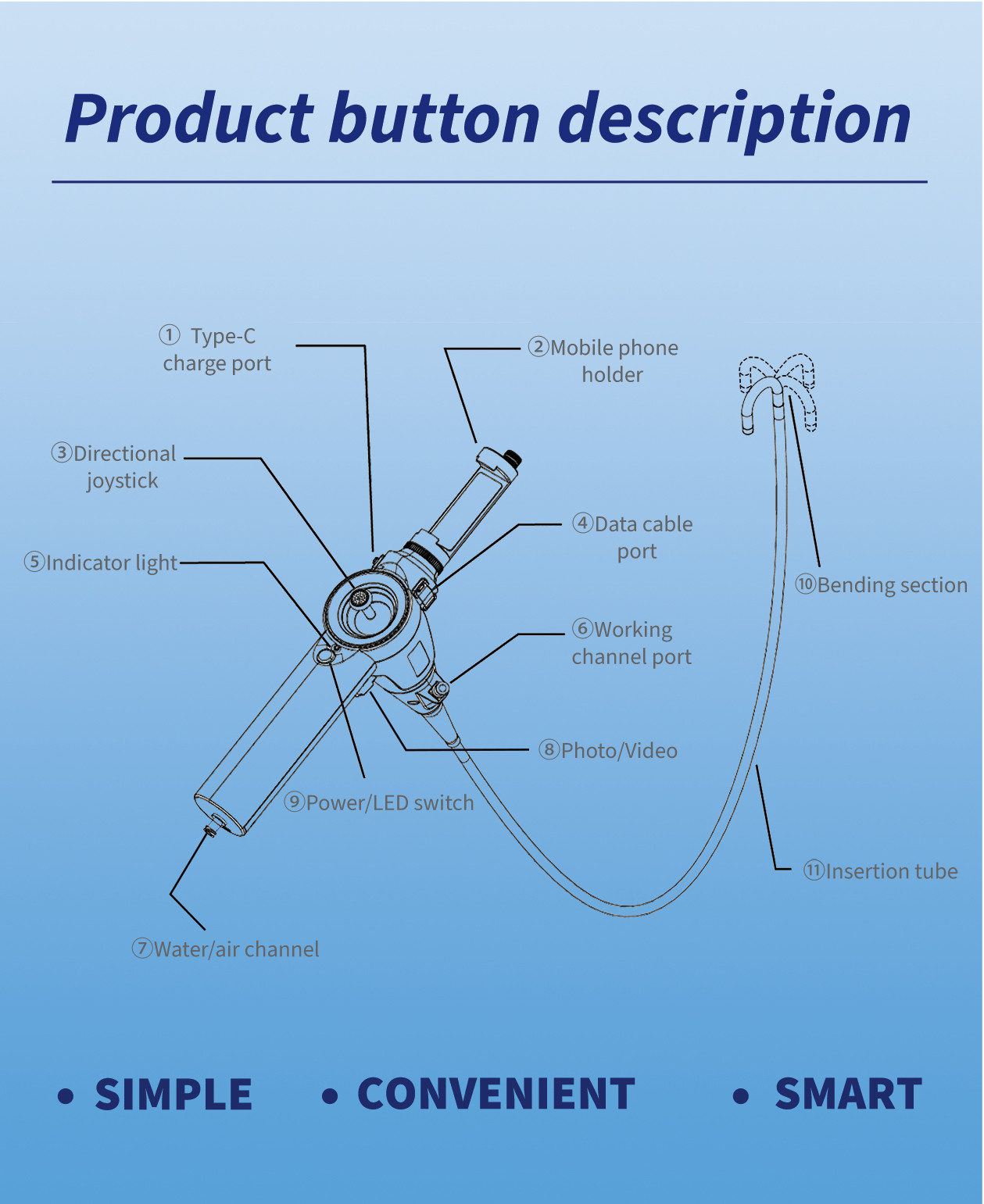

Detailed Image of RAE-105Pro Portable WiFi Veterinary Endoscope

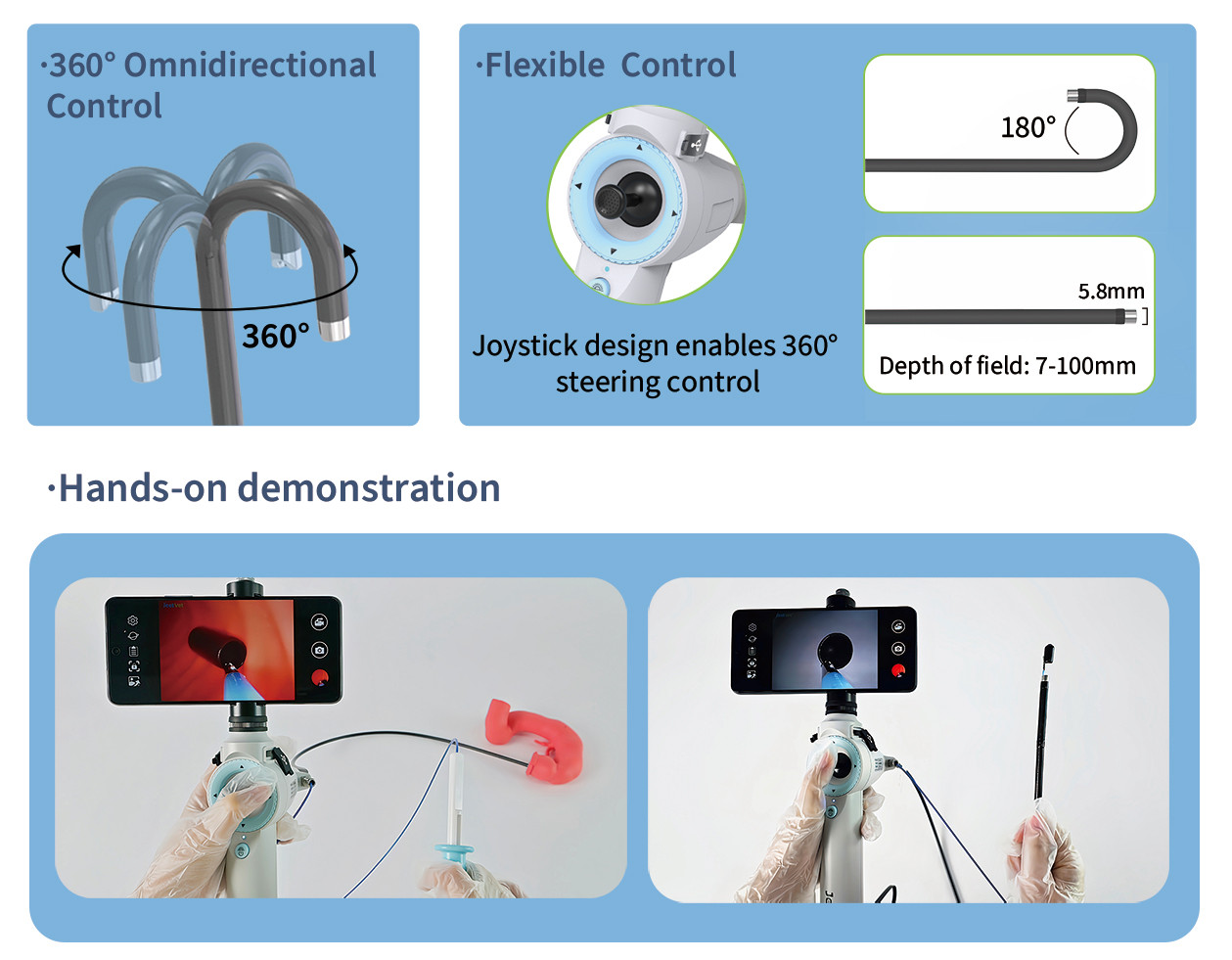

Joystick design enables 360° steering control
Ergonomic design handle
Veterinary gastroscope as a whole

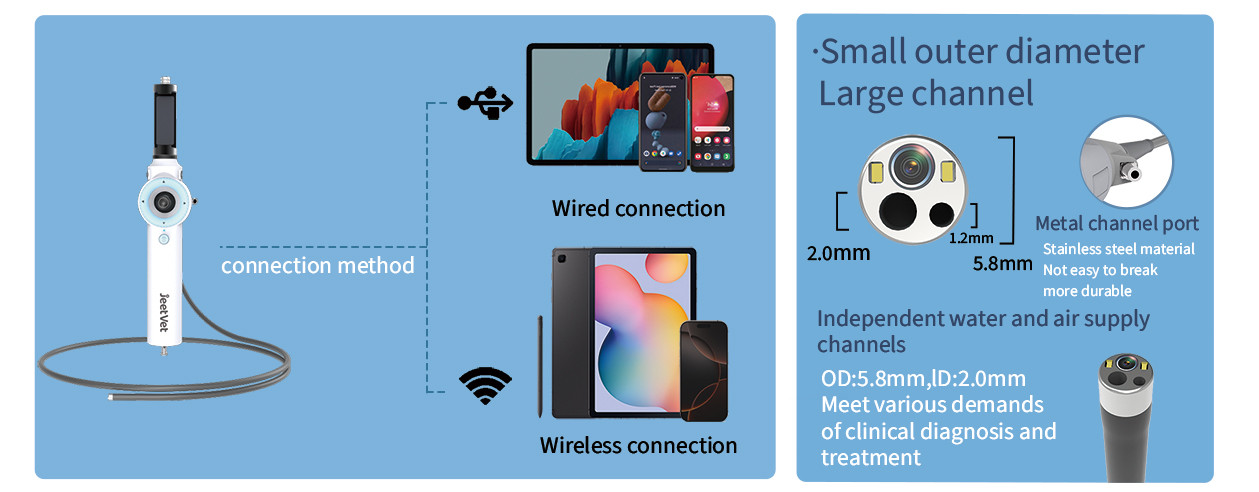

Small diameter, large channel
360° rotation and 180° bending
Two-layer medical material

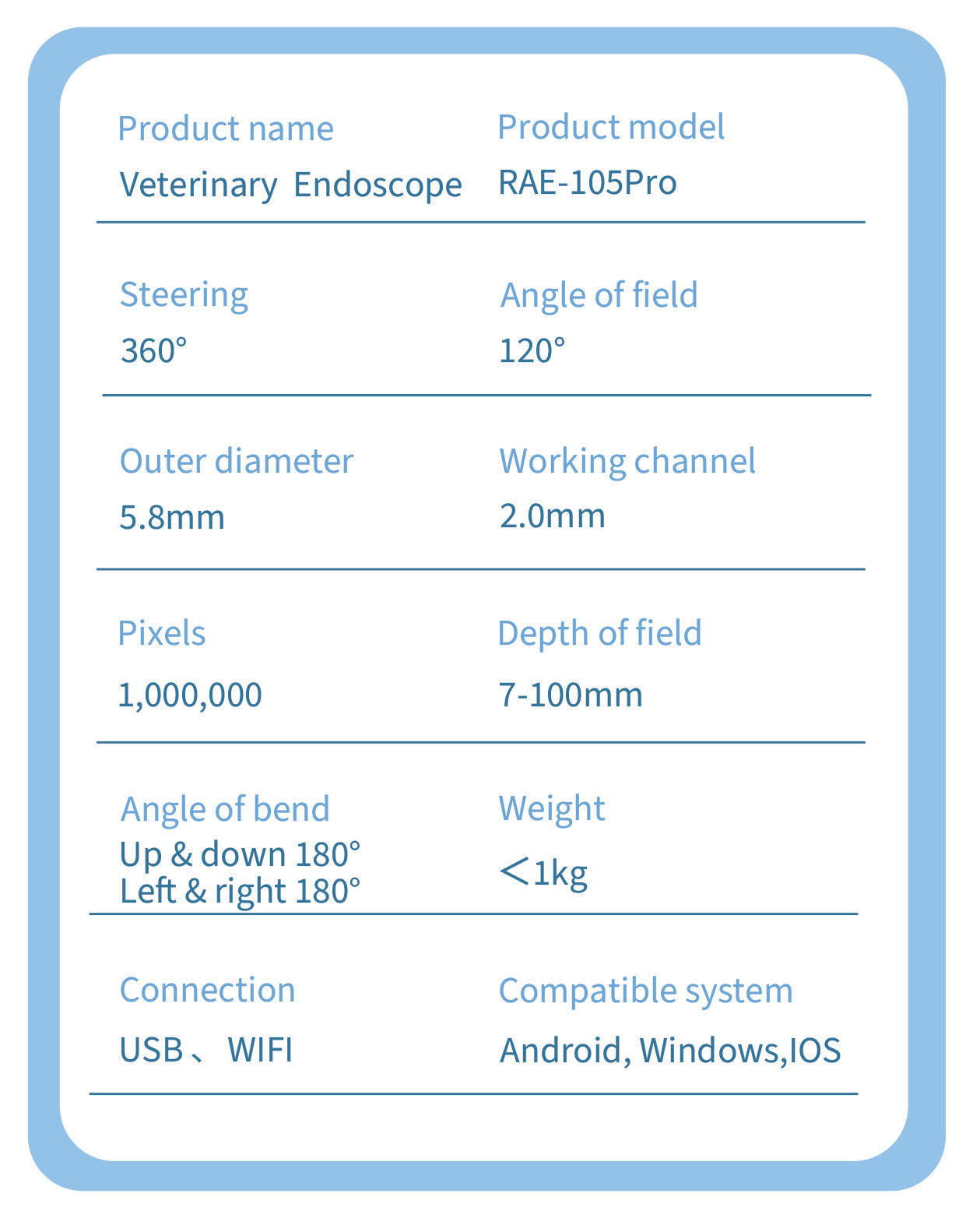

Portable Veterinary Endoscope Technical Parameters
General Parameters |
Brand
|
JeetVet
|
|
|
Model
|
RAE-105Pro
|
||
|
Purpose
|
Veterinary endoscopy, mainly used for stomach and digestive tract examination of small and medium size animals
|
||
Optical Parameters |
Lens diameter
|
1.0 mm - 2.0 mm (depending on different models)
|
|
Depth of field | 7 mm - 100 mm | ||
Resolution | HD (depending on different models)
Mechanical parameters | ||
Pixels | 1,000,000 | ||
Field angle | 120° | ||
Mechanical Parameters | Working length | 750 mm | |
Outer diameter of the tube | 5.8 mm | ||
Inner diameter of the channel | 2.0 mm | ||
Insertion tube material | Medical grade flexible material, corrosion-resistant and antibacterial | ||
Bending angle | 180° | ||
Operation and Control | Control method | Handheld controller with joystick for 360° steering control | |
Display | Displayed by user's smart phone, tablet or computer | ||
Lighting System | Light source type | Endoscope operates without internal electric power, drawing power from the user's mobile phone. | |
Connection and Compatibility | Connection interface | Use USB cable to connect with smart phones, tablet or computer | |
Compatible devices | Support connection to smart phone, tablet, computer for data transmission and real-time monitoring | ||
Other Functions | Disinfection method | Alcohol wiping，enzymatic cleaning solution or 2% glutaraldehyde disinfection | |
Portability | Lightweight design, equipped with a portable case, convenient for carrying and use | ||
User interface | Friendly operation interface | ||

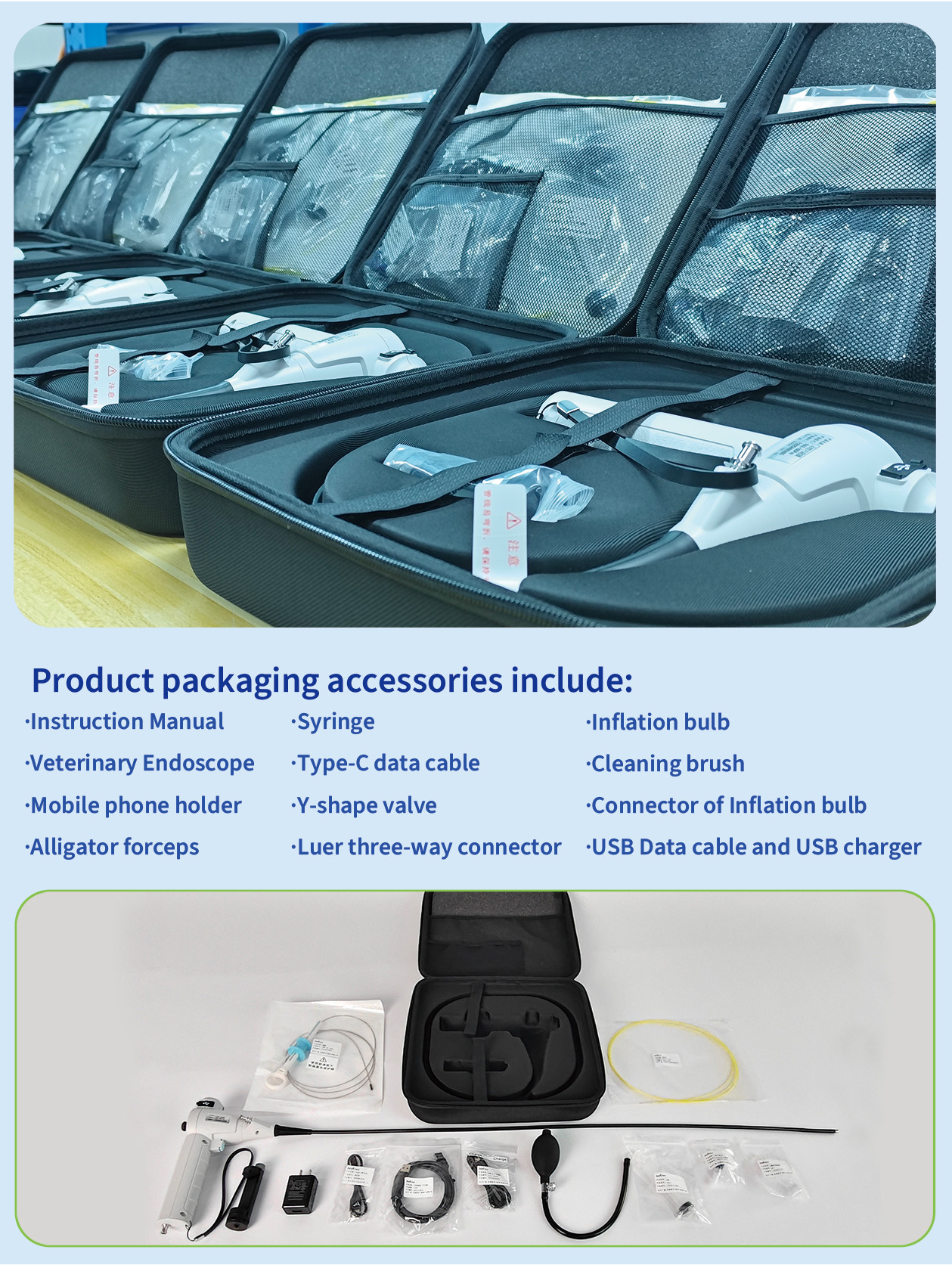

Accessories | Foreign body forceps, Y-shape valve, Luer three-way connector, cleaning brush, packing case and etc | ||
Related Video of RAE-105Pro Veterinary Endoscope
Modern & Innovative Veterinary Endoscopy | RAE-105Pro Portable WiFi Veterinary Endoscope
Experience the modern and innovative veterinary diagnostics with the RAE-105Pro JeetVet Veterinary Endoscope. Designed with dual working channels, HD imaging, and intuitive controls, the RAE-105Pro empowers veterinarians to perform minimally invasive procedures with confidence and clarity. From foreign body retrieval to internal examinations, this versatile tool is built for precision and performance across a wide range of species.

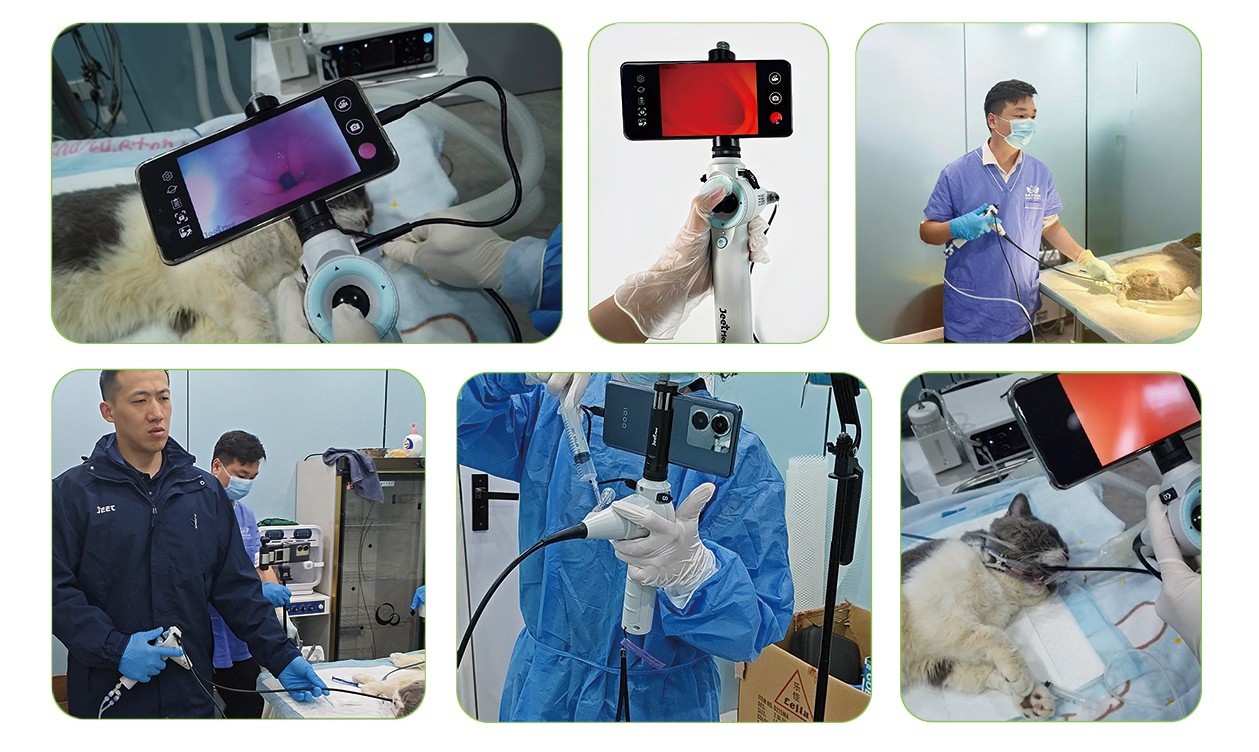

Portable Veterinary Endoscope Application Scenario
Applicable Scenarios
Veterinary Clinics: Ideal for routine gastrointestinal examinations of small animals, RAE-107 provides veterinarians with the necessary tools to diagnose and treat a wide range of conditions effectively.
Veterinary Hospitals: Essential for high-volume settings where reliable and efficient diagnostic tools are crucial for patient care.
Field Services: Its portability makes RAE-105Pro an excellent choice for mobile veterinary services, ensuring that high-quality diagnostics are available in remote and rural areas.
Specialty Practices: Perfect for specialized veterinary clinics focusing on gastroenterology, providing precise and detailed imaging for specialized care.
